Diesse MINI-CUBE

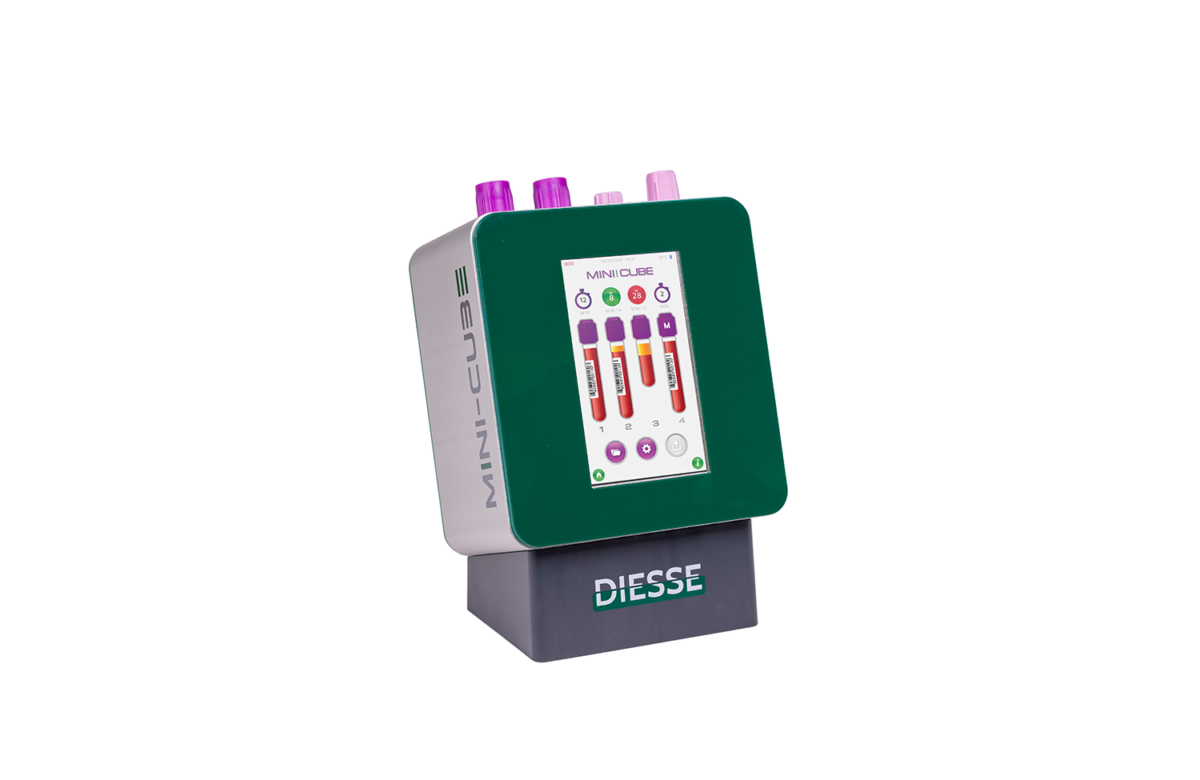

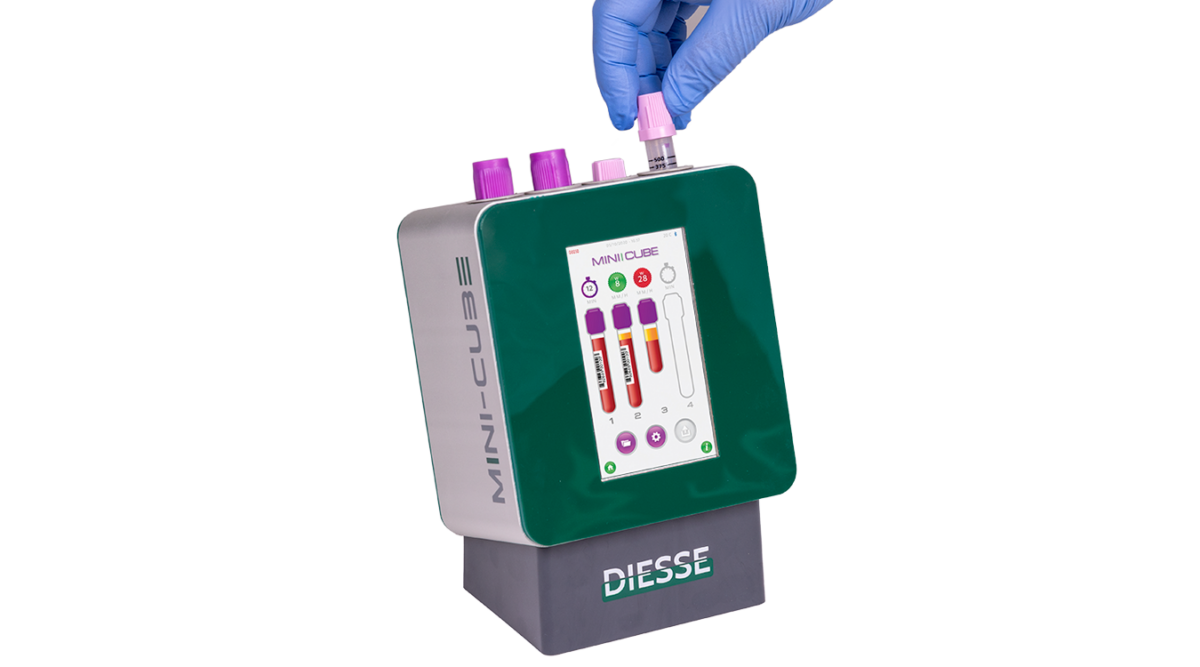

The Diesse MINI-CUBE is an automated erythrocyte sedimentation rate (ESR) analyzer that produces results directly from EDTA tubes without consuming the patient sample. The MINI-CUBE produces results in 20 minutes, utilizes bar code scanning for positive patient identification and easily interfaces to LIS.

The Diesse MINI-CUBE is an automated instrument for erythrocyte sedimentation rate testing directly from EDTA tubes without consuming the patient sample. The MINI-CUBE automated sed-rate instrument provides greater than 95% correlation to the modified Westergren method and is compatible with standard 13 x 75 mm K₂EDTA and K₃EDTA tubes (2.0-4.0 mL) and pediatric (500 µL) BD Microtainer EDTA tubes. The compact ESR analyzer requires no reagents, eliminating operator exposure to patient samples. The MINI-CUBE offers random access sample loading, bar code scanning, a Bluetooth printer, automatic archive of QC and patient data, and LIS compatibility. The Quality Control feature eliminates the need to manually record daily runs, and statistical reports are generated with the following features: Levey Jennings charts, standard deviation, CV%, mean, and highest and lowest result.

Features

Clear results in 20 minutes – test up to 12 samples per hour
Compatible with standard 13 x 75 mm K₂ or K₃EDTA tubes and 500 µL BD Microtainer EDTA tubes
> 95% correlation to the Modified Westergren method
User-friendly touchscreen interface
External barcode scanner and printer
QC and patient archives store 5,000 results per file

Benefits

Produces ESR results without consuming patient sample
No reagents are required
Barcode scanner ensures positive patient identification
Closed system eliminates the risk of exposure to patient sample
Compact size optimizes the use of lab bench space
Easily interfaces to LIS

Instructions (IFU)

Manuals

Product Information

Downloads

Looking for an older document? Click here for archived assays and certificates.

Description	Catalog Number

Diesse MINI-CUBE Analyzer	240401
Diesse ESR Printer	240402
Diesse ESR Scanner	240405
Diesse Paper (5 rolls)	240414
Diesse Transponder (500 tests)	240403
Diesse Transponder (1000 tests)	240404

Order MINI-CUBE today

Request a quote

International customers find a distributor

Streck provides the laboratory with a comprehensive sed-rate line that includes accurate, reliable and user-friendly analyzers for erythrocyte sedimentation rate testing in EDTA tubes without consuming the patient sample. The Streck sed-rate line also includes accurate and reliable quality controls and accessories.
